Yamaha offers the all-new Grizzly 90 for smaller adventure-seekers.
Scaled down but not scaled back, the new Grizzly 90 takes cues from the top-performing big bore Grizzly. The result is accessible, confidence-inspiring performance with Grizzly family style.
With convenient features like electric-start, a large comfortable seat, front/rear racks and aggressive styling, the new Grizzly 90 is the perfect machine for riders 10 years and older who want to REALise Adventure with family and friends.
Now you can have one just like dad’s.
Rider safety is our priority. This ATV should only be ridden by riders aged 10 years and older.
*Images are shown for reference only, product specifications and data are subject to change without notice.

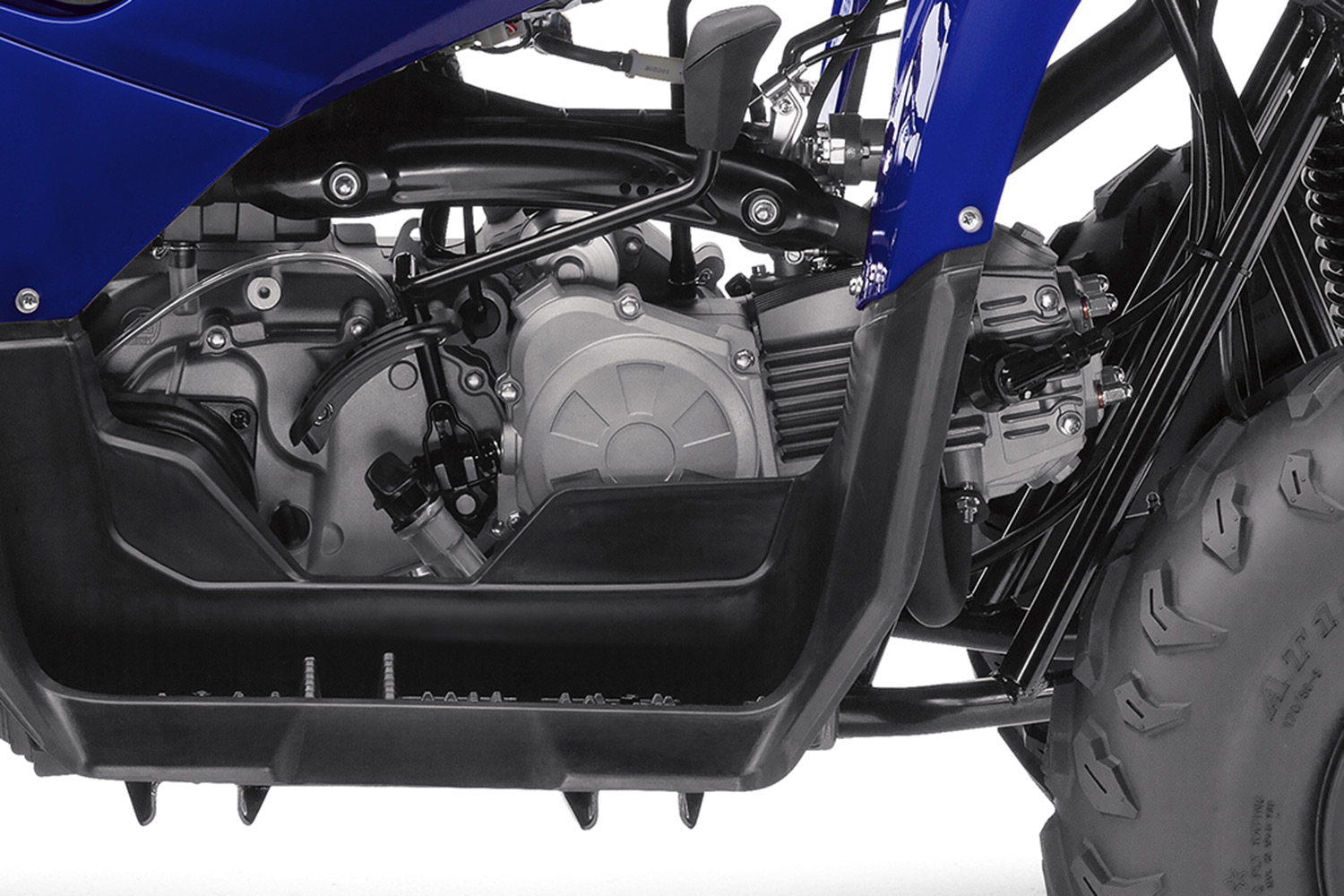

The Grizzly 90’s four-stroke SOHC 90cc engine is tuned to develop excellent low- to mid-range performance. The engine is air-cooled for simplicity, performance and long service life, and utilises proven wet-sump lubrication.

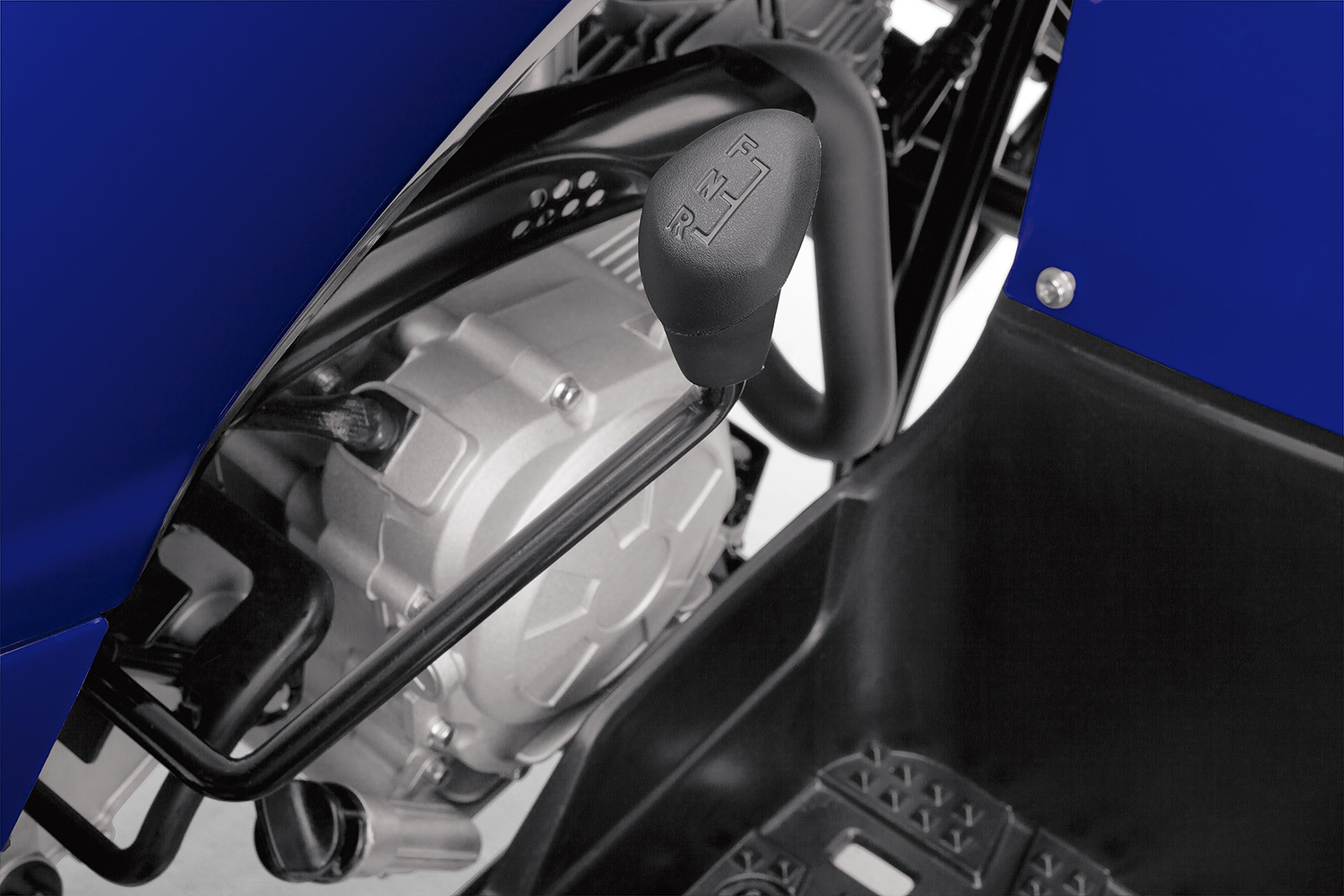

Fully automatic, continuously variable transmission (CVT) means no shifting. Handy for all riders, full auto is feature that young entry level riders love. And standard reverse simplifies turning the Grizzly 90 in tight spots.

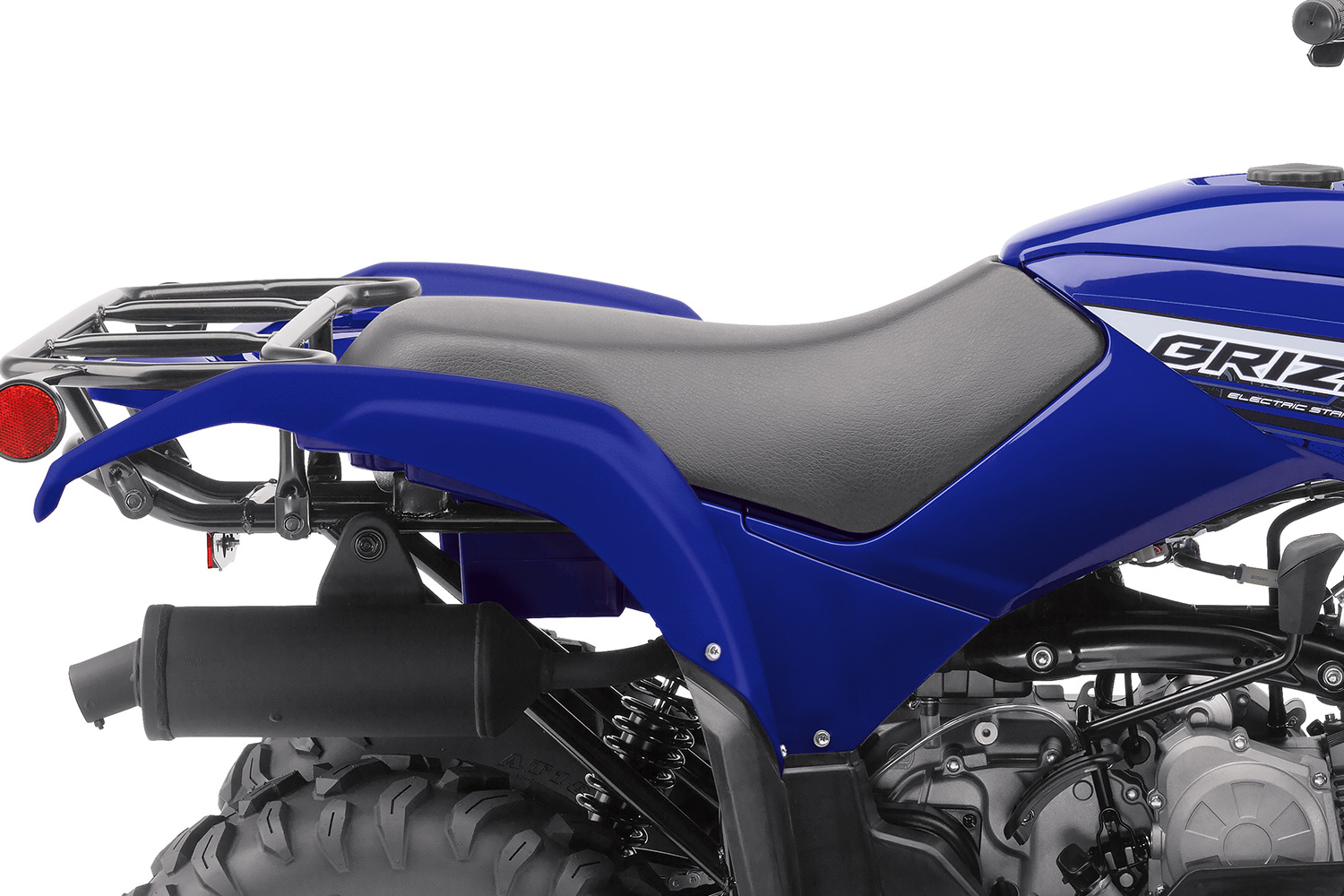

The Grizzly 90 is designed to be comfortable for a wide variety of riders ages 10 years of older. With its large and plush seat matched to wide floorboards, riders will enjoy years of riding as they hone their off-road riding skills.

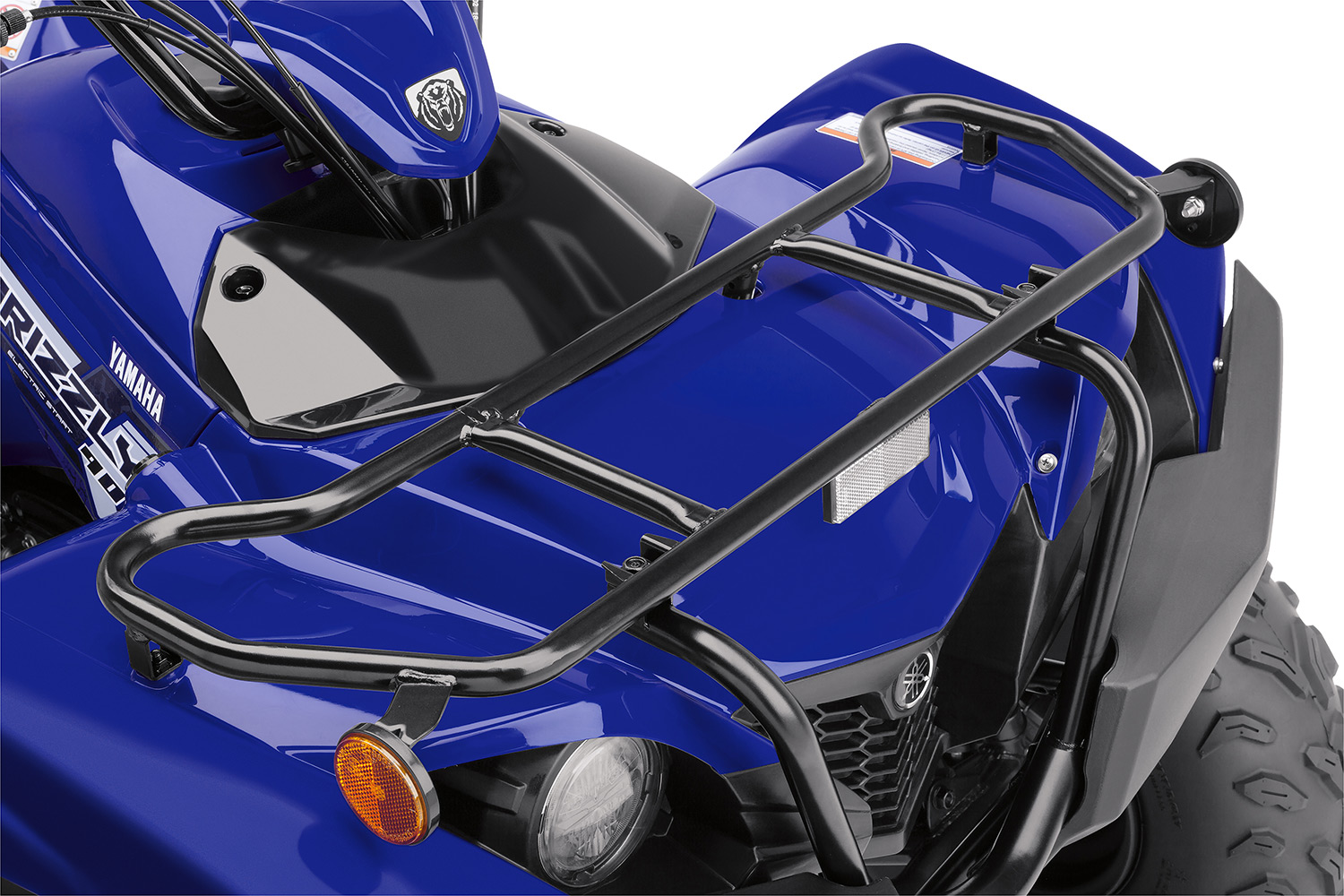

Robust steel cargo racks front and rear both boast 5kg carrying capacity and give younger riders the ability to pack their own gear as they join the family on their next adventure.

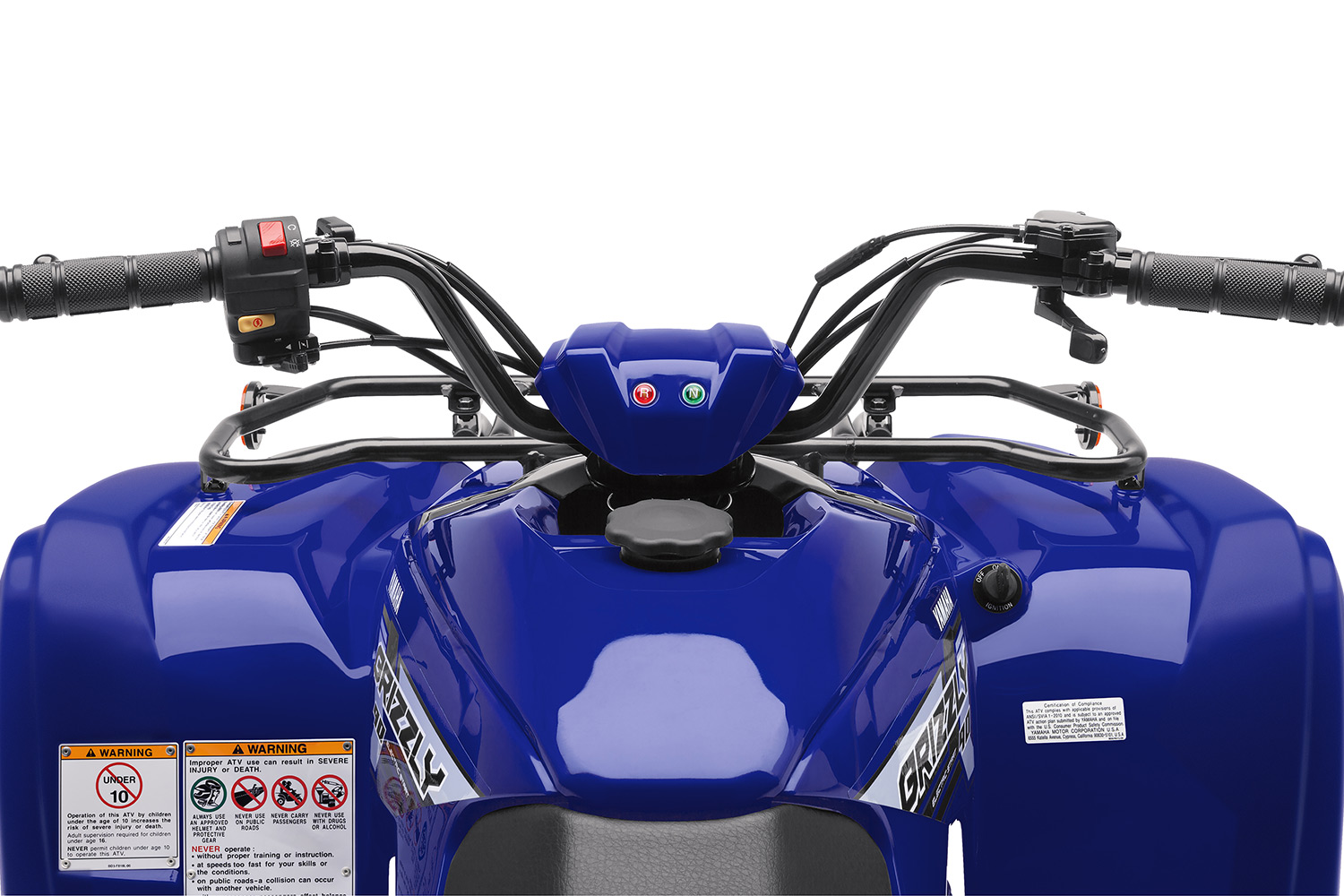

The Grizzly 90 features a tall handlebar and increased seat-to-peg distance to give riders a comfortable, upright riding position for excellent control feel and great trail visibility.
The Grizzly 90 takes cues from the top-performing big bore Grizzly but is designed specifically for younger riders getting into the sport. The result is accessible, confidence-inspiring performance with Grizzly family style.
| Engine Type | Single cylinder, air-cooled, 4-stroke, SOHC 2-valve |
| Displacement | 89.9 cc |
| Bore x Stroke | 47 x 51.8 mm |
| Compression Ratio | 9.2 : 1 |
| Lubrication System | Wet sump |
| Ignition | CDI |
| Starter System | Electric & Kick |
| Fuel Tank Capacity | 6.6 L |
| Final Transmission | Chain |
| Transmission | V-belt automatic, F, N, R |
| Length | 1562 mm |
| Width | 1031 mm |
| Height | 1005 mm |
| Seat Height | 730 mm |
| Wheelbase | 1032 mm |
| Ground Clearance | 210 mm |
| Wet Weight | 139.6 kg with 6.6 litres of fuel |
| Suspension Front | Single A-arm, 126mm travel |
| Suspension Rear | Swingarm, 145mm travel |
| Brakes Front | Dual drums |
| Brakes Rear | Drum |
| Tyres Front | AT19 x 7-8 |
| Tyres Rear | AT18 x 9-8 |
